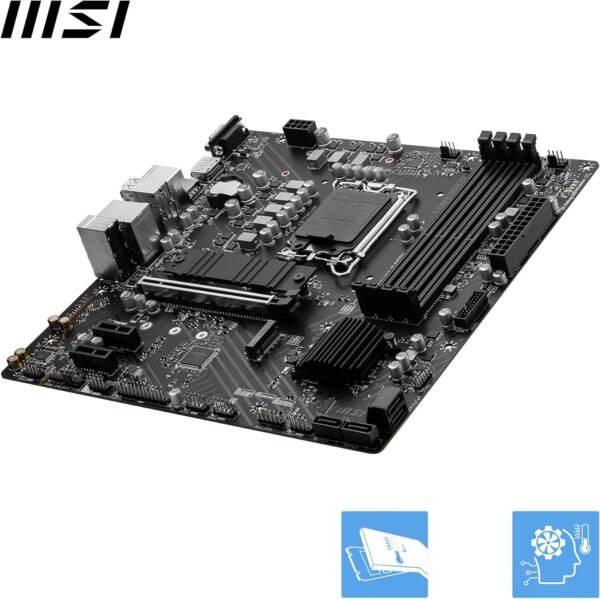

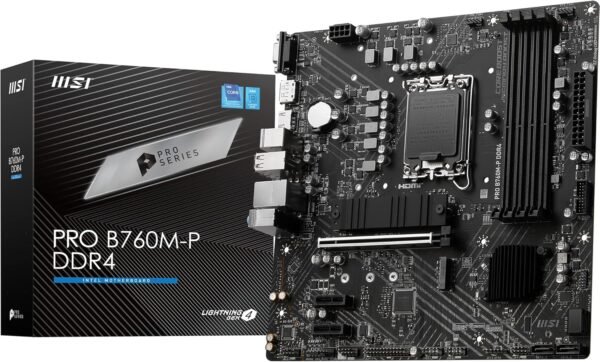

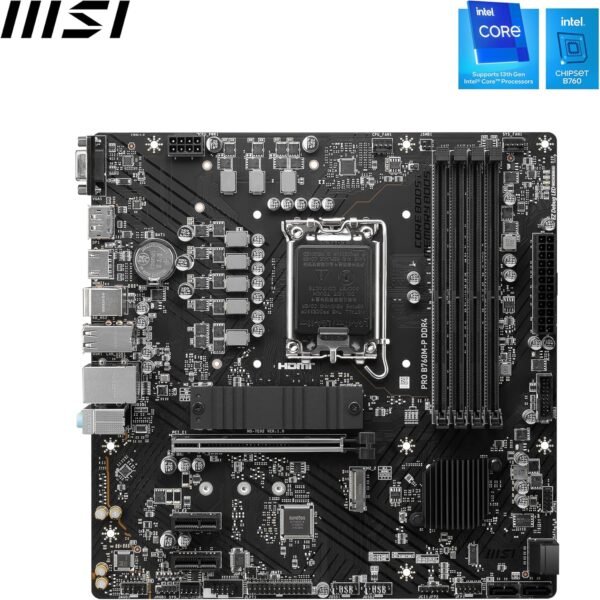

Detailed Review of MSI PRO B760M-P DDR4 Motherboard for High-Performance Builds

Description

Performance and Reliability at the Core

The MSI PRO B760M-P DDR4 motherboard has been a dependable workhorse in my setup. Built on the Intel B760 chipset, it supports 12th and 13th Generation Intel Core processors, ensuring compatibility with the latest CPUs. I paired it with an Intel i5 processor, and it managed multitasking like a pro—streaming, editing documents, and running resource-heavy applications with ease. The inclusion of Core Boost technology and a fully digital VRM design ensures that the power delivery remains smooth and reliable, which is particularly important for maintaining system stability.

What impressed me even more was the DDR4 memory support. With speeds of up to 4800 MHz (overclocked), applications load quickly, and system responsiveness is top-notch. I’ve tested this with 32GB of DDR4 RAM, and the motherboard handled it without any hiccups.

Design and Build Quality: Business Elegance

The physical design of this motherboard is understated but purposeful. It’s an mATX form factor, compact yet packed with features. The Steel Armor reinforcement on the PCIe 4.0 x16 slot is a great touch, especially for anyone planning to install a heavy graphics card. I tested it with a mid-range NVIDIA GPU, and the installation was straightforward, with the Steel Armor providing that extra peace of mind.

The board also includes dual M.2 slots, one of which comes with the Shield Frozr. This feature isn’t just marketing fluff—it genuinely helps keep the M.2 SSDs cooler, which is crucial for preventing thermal throttling. During gaming sessions and large file transfers, my NVMe SSD maintained consistent speeds, thanks to this thoughtful addition.

Connectivity Options: A Mixed Bag

The connectivity options offered by this motherboard are decent. It includes a USB 3.2 Gen 2 Type-C port, which I found invaluable for quickly transferring data between my external SSD and the system. Additionally, having 4 USB 2.0 ports and 1 USB 3.2 port at the back is convenient but feels somewhat dated for a modern motherboard.

Display options are well-covered with HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz), and even a VGA port for those using older monitors. I connected it to a 4K monitor via DisplayPort, and the visuals were sharp and vibrant. However, the HDMI 1.4 limitation might not be ideal for users who want higher refresh rates in 4K.

One downside is the lack of built-in Wi-Fi support, which feels like an oversight in this price range. Thankfully, the 1G LAN port provides a stable and fast wired connection. But for someone like me who prefers a clutter-free desk, the absence of Wi-Fi could be a dealbreaker.

Key Benefits

• Supports the latest Intel processors (12th and 13th Gen) for future-proofing.
• Dual M.2 slots with Shield Frozr for improved SSD cooling and performance.
• Steel Armor PCIe slot enhances durability for heavy GPUs.
• DDR4 memory support with speeds up to 4800 MHz (OC) ensures fast system performance.

Areas for Improvement

• No built-in Wi-Fi, which is a notable omission in this segment.
• The HDMI port is limited to 4K at 30Hz, which may not suit gamers or content creators.
• USB 2.0 ports feel outdated for modern setups.

Competing Products

When compared to other motherboards in the same category, like the ASUS Prime B760M-A and Gigabyte B760M DS3H, the MSI PRO B760M-P DDR4 holds its ground in terms of performance and build quality. The ASUS model includes built-in Wi-Fi, which makes it more versatile for wireless setups. However, it lacks the Steel Armor reinforcement that MSI offers, which could be crucial for users installing high-end GPUs.

On the other hand, the Gigabyte B760M DS3H is slightly more affordable but misses out on features like the Shield Frozr for M.2 SSDs. That said, Gigabyte does provide more USB 3.2 ports, which might appeal to users with multiple peripherals.

Ultimately, the PRO B760M-P DDR4 stands out for its robust power delivery, cooling solutions, and memory overclocking capabilities, making it a strong contender for professionals and enthusiasts alike.

Bang for the Buck

Considering the features packed into this motherboard, it offers excellent price performance for users who need a reliable platform for modern processors. While the lack of Wi-Fi and the abundance of USB 2.0 ports are minor setbacks, the dual M.2 support, Steel Armor PCIe slot, and Core Boost technology make it a solid investment. If you’re building a system for work or light gaming, this motherboard delivers a good balance of performance and functionality without breaking the bank.
